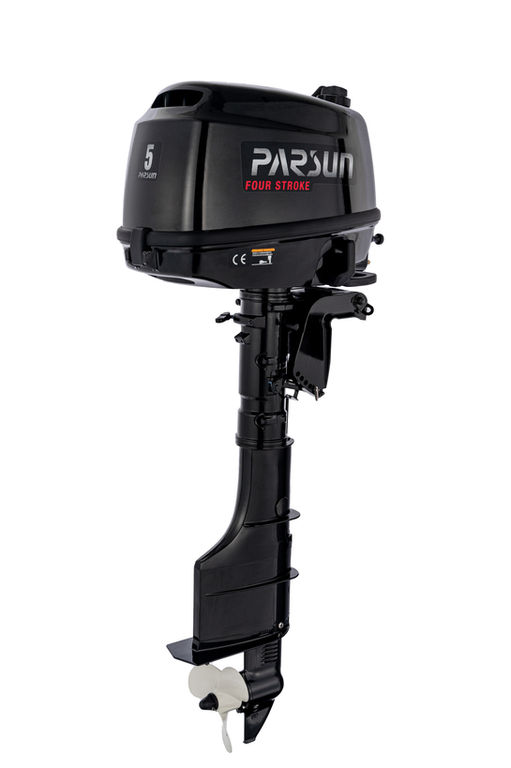

Parsun Outboard
F5BMS/L
$1495 short $1595 long
PD & freight charges may apply
Is a compact and efficient 4-stroke outboard motor, perfect for personal use, especially for those who enjoy solo boating. Designed with a lightweight build, it’s easy to carry and install. This motor also offers excellent fuel efficiency, allowing you to enjoy longer trips without frequent refueling. Ideal for boats up to 10 feet in length, the F5 provides reliable performance and is a top choice for those seeking a balance of power and portability in a small outboard engine.
Specifications
Unit | F5BMS | F5BML | |
Overall length | mm | 717 | 717 |
Overall width | mm | 361 | 361 |
Overall height | mm | 1029 | 1156 |
Transom height | mm | 381 | 508 |
Weight | kg | 24.5 | 25.5 |
Full throttle operating range | r/min | 4000-5000 | 4000-5000 |
Maximum output | Kw(HP) @r/min | 3.6(5)@5000 | 3.6(5)@5000 |
Idling speed (Neutral) | r/min | 1500-1600 | 1500-1600 |
Engine type |
| OHV | OHV |
Cylinders |
| 1 | 1 |
Displacement | cm³ | 112 | 112 |
Bore x stroke | mm | 59.0x41.0 | 59.0x41.0 |
Model | Unit | F5BMS/L |
Ignition system |
| TCI |
Control system |
| Tiller Control |
Starting control |
| Manual start |
Gear positions |
| Forward- Neutral- Reverse |
Gear ratio |
| 2.08 |
Trim and tilt system |
| Manual tilt |
Fuel Tank capacity | L | Integral 1.3 |
Maximum fuel consumption | L /h | 2.0 |
Engine oil capacity (without oil filter) | L | 0.5 |
Gear oil capacity | cm³ | 100 |
Propeller options* | in | 3-7 1/2 " x 7" |
Propeller choice will vary by boat size and application. |
Centreboard Committee, KeriKeri Cruising Club
On behalf of the coaches on Lake Manuwai, we are so pleased with our new Parsun 9.8 outboard.
It is so easy to start, economical, runs for long periods at low speeds and is quiet. Ideal for our safety ribs while instructing learner sailors.
Thank you, will definitely use again when replacing our other outboards.
